Multi functional vertical dryer tower paddy dryer 30 tons indirect batch type dryer 30 tons
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Jenis | Jenis batch | Penggunaan | pengeringan biji-bijian |
|---|---|---|---|
| Kondisi | baru | Dimensi tubuh | 2900*2260*12700mm |
| Konsumsi Udara | 10000-14000 m3/jam | Kekuatan | 21,7kw |
Deskripsi Produk

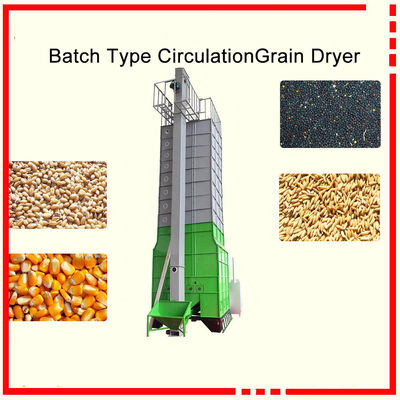

Multi functional vertical dryer tower paddy dryer 30 tons indirect batch type dryer 30 tons
Main Features:
1. Using PLC microcomputer control, overload, overheating, stall , full warehouse , leakage automatic protection. Finish the operation with one key.
2. Dry area adopting special inner structure, make the heat flow and grain have a long time mixed movement along multiple directions, so that make the grain can be dried more overall
3. Improved lifting and conveying systems , reducing the broken phenomenon.
4. Using a low-temperature hot air tempering drying technology, improve the drying efficiency
Brief Introduction:
This paddy dryer machine 30 tons is our company new development project. Compared with other traditional products, it has the low cost, uniformity dry, high automation, simple operation and maintenance, loss broken rate. It applicable to grain, wheat and corn and so on. As a 20 years history manufacturer, we can provide customized service and good after-sales service.
How Did Presun Dryer Works
- Our paddy dryer machine 30 tons need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
- After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
- When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
- The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
- Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
- Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request
Technical parameters
|
Model Item |
5HPX-15 | 5HPX-20 | 5HPX-30 | 5HPX-35 | |||||
| Loading capacity(kg) | Paddy | 3,000~15,000 | 3,000~20,000 | 4,000~30,000 | 5,000~35,000 | ||||
| Corn | 3,800~18,500 | 3,800~24,600 | 5,000~36,400 | 6,000~42,000 | |||||
| Dimension L*W*H (mm) | 4321*2583*10000 | 4600*3263*10500 | 4600*3570*12700 | 5712*5000*12400 | |||||
| Net Weight | 3,000 | 4,200 | 5,500 | 8,000 | |||||
| Heat Source | Biomass Furnace/Gas Burner/Diesel Burner | ||||||||
| Power Consumption (kw) | 9.95 | 10.6 | 21.7 | 19.7 | |||||
| Input Voltage | 3 Phase 220V/380V,50Hz | ||||||||
| Husk Furnace | Type | Indirect | |||||||
| Ignition | Manual | ||||||||
| Function | Loading | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | ||||
| Discharge | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | |||||
| Drying Rate | 0.5-1.2 %/h | 0.5-1.2 %/h | 0.6-1.4 %/h | 0.5-1.2 %/h | |||||
| Standard Devices | Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor | ||||||||
| Safety Devices | Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch | ||||||||

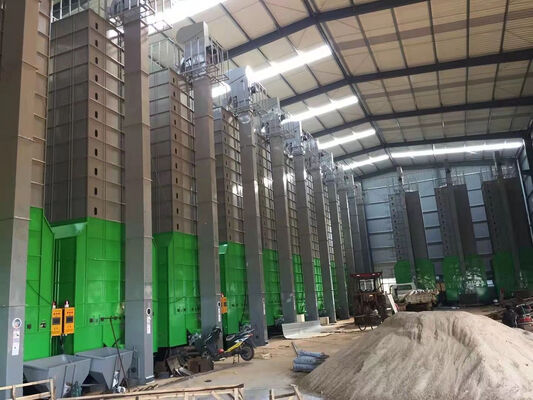

What's The Drying Plant Looks Like?
Details
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Where Are We From
Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.
The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy
conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
